FMX-42u 4 Channel Portable Mixer
Feature
FMX-42u is new model. This model adapted latest AD converter and output analog electronic audio signal as digital signal to I-Phone, I-Pad, PC etc through mini USB.(Smart phone is excluded as standard item in factory packing.)
Professional Audio, Low Noise Portable Mixer
4 Balanced XLR Inputs with Individual Level and Pan Controls
Phantom Power with On/Off Switch for each Input (48V)
Pro VU Meters for Accurate Settings

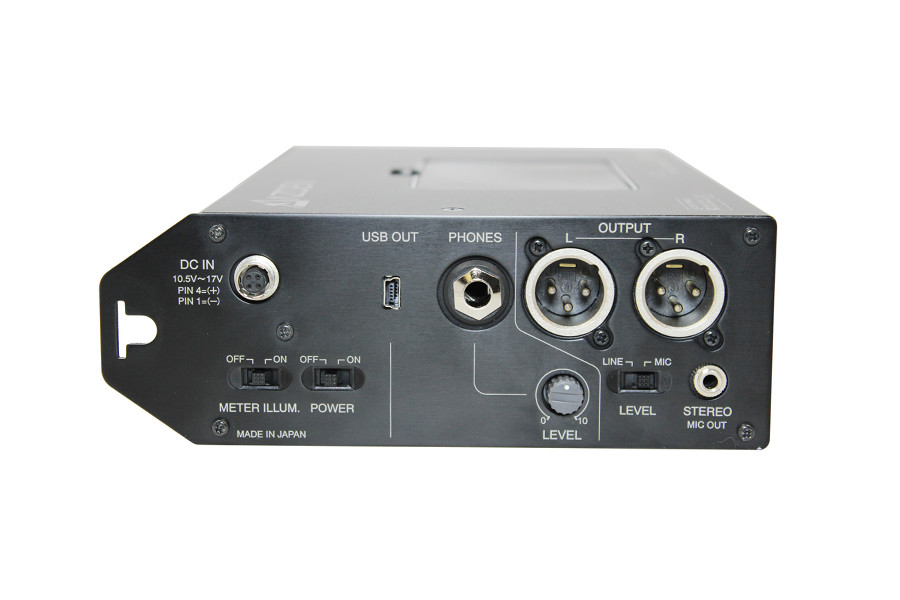

2 Balanced XLR Selectable Mic/Line Outputs
Stereo Mini-Jack Output for DV Cameras
Low Battery Indication with LED
Headphone Output(Stereo)with Level Control
Operates for up to 7-10 hours on 6”AA” Batteries
DC Input with Optional External Power Supply (10.5C~17V)
Built-in 1kHz Tone Generator
Built-in Slate Microphone
Ballistic Nylon Carrying Case Included
Full metal housing for outside mobile usage
Specification
| INPUT side | Input level(Electronic balance) LINE Standard:＋4 d Bu Max: ＋26 d Bu or more Impedance: 20kΩ MIC-HI Max: ＋4 d Bu Impedance : 2kΩ MIC-LO Max : －15 d Bu HPF(High pass filter） Fading frequency: 100Hz 、6dB／oct Phantom On/Off |
|---|---|
| Output level | LINE level Standard : ＋4dBu (loading 5kΩor more) Max output : ＋20dBu (loading 5kΩ or more) Impedance : 600Ω MIC level Standard : －36dBu (loading 5kΩ or more) Output : －20dBu (loading 5kΩ or more) Impedance : 600Ω |
| Unbalanced Output | Standard : －36dBu（loading 2kΩ or more） Max : －20dBu（loading 2kΩ ore more） Impedance : 120Ω Monitoring max output : ＋1 d Bu（loading 32Ω、Battery voltage 9V） Output level meter Standard : 0VU（＋4 d Bu ） |
| Digital output level | Interface format : USB2.0, FULL SPEED Audio data format : Isochronous data format Audio sampling frequency : 16／ 22.05／ 32／ 44.1／ 48 kHz Audio data resolution : 8／ 16 bit Audio data Channel : 1／ 2 Channel Device name : 「USB AUDIO CODEC」 |
| Battery requirement | 6 Alkarine "AA" Battery life (with alkaline batteries, LCD off) FMX-42u: USB operating : Approx 7 hours (Phantom OFF） Approx 5 hours (Phantom ON, two mic input) |
| Dimension | W220 × D160 × H56 (mm) (exclude side frame) |
| Weight | Approx1.3Kg(exclude batteries） |
