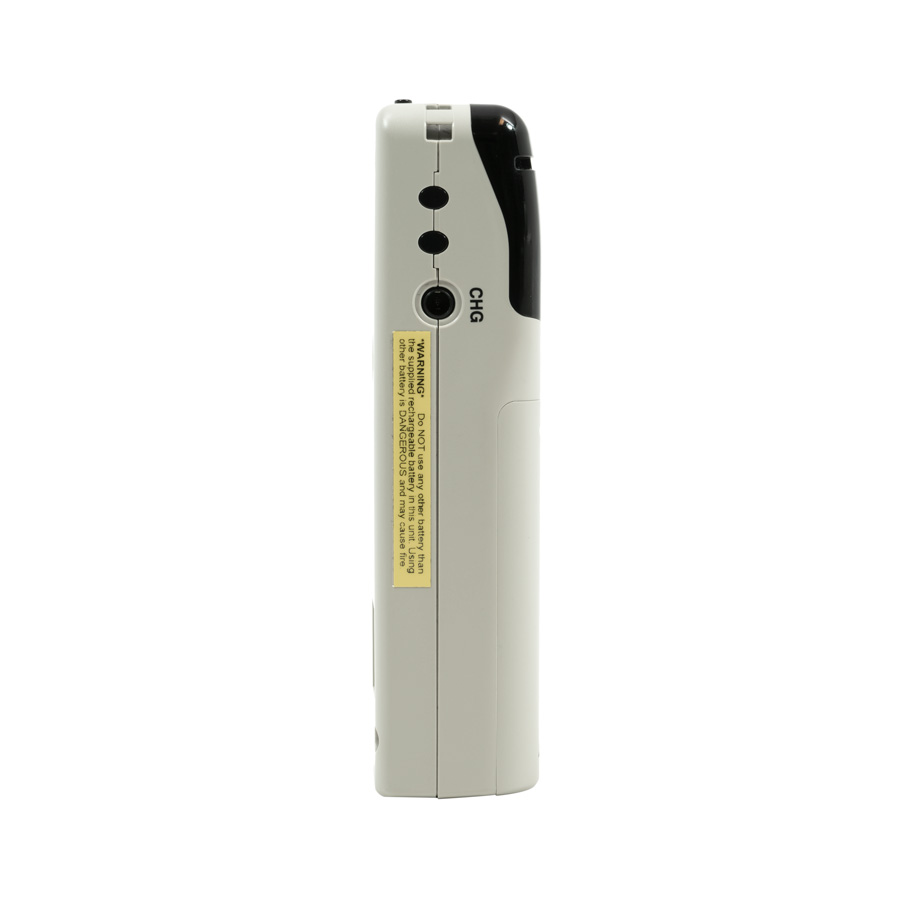

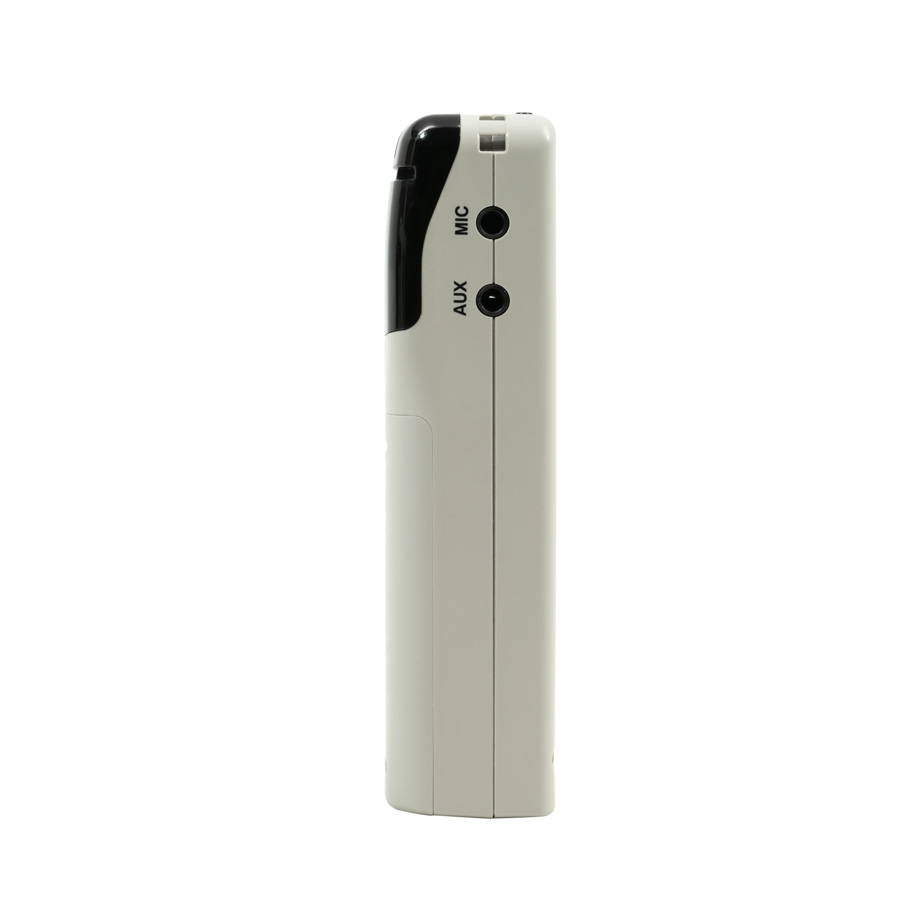

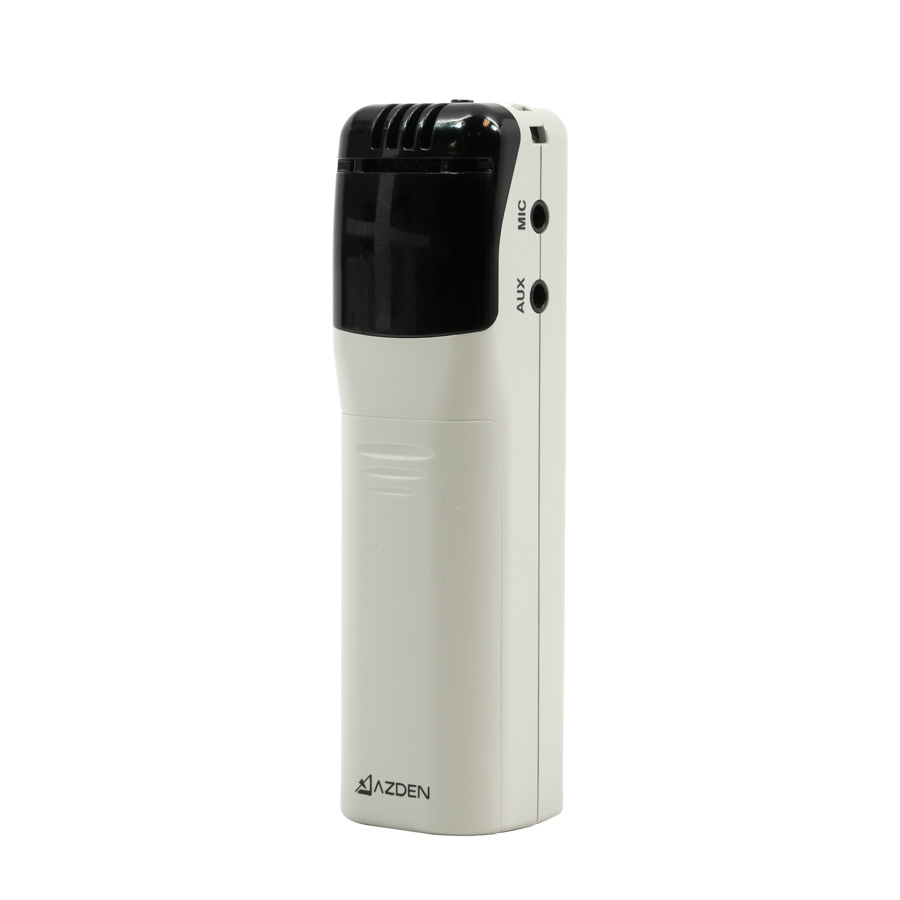

IRN-30 Mini Handheld IR Microphone/Transmitter
Feature
IRN-30Mini Handheld IR Microphone/Transmitter
Small and lightweight, the IRN-30 is the perfect handheld “pass-around” microphone for student participation. The built-in microphone provides excellent sound pick up, but for added flexibility, mini-plug connections are included for an external microphone or line-level signal. It is powered by just one “AA” battery (alkaline or rechargeable) and is compatible with all Azden infrared models. If using the provided NiMH AA rechargeable battery, it can be charged while installed inside the IRN-30, by connecting the BC-31 wall-charger (note that other battery brands will not be able to charge in-unit).
Specification
| Sub-carrier frequencies | 2.56MHz |
|---|---|
| Modulation | FM |
| Microphone element | Uni directional ECM x1 |
| Frequency max deviation | <±40kHz |
| Frequency response | 100 – 8kHz ±3dB |
| Aux/Line input | φ3.5mm mini jack |
| Mic input | φ3.5mm mini jack |
| Mic gain adjustment | from +6dB to -10dB |
| Battery type | 1 AA alkaline / 1 AA rechargeable NiMH |
| Battery life | 8 hours w/alkaline battery |
| Size | 27 x 27 x 90 mm |
| Weight | 74g w/battery |
