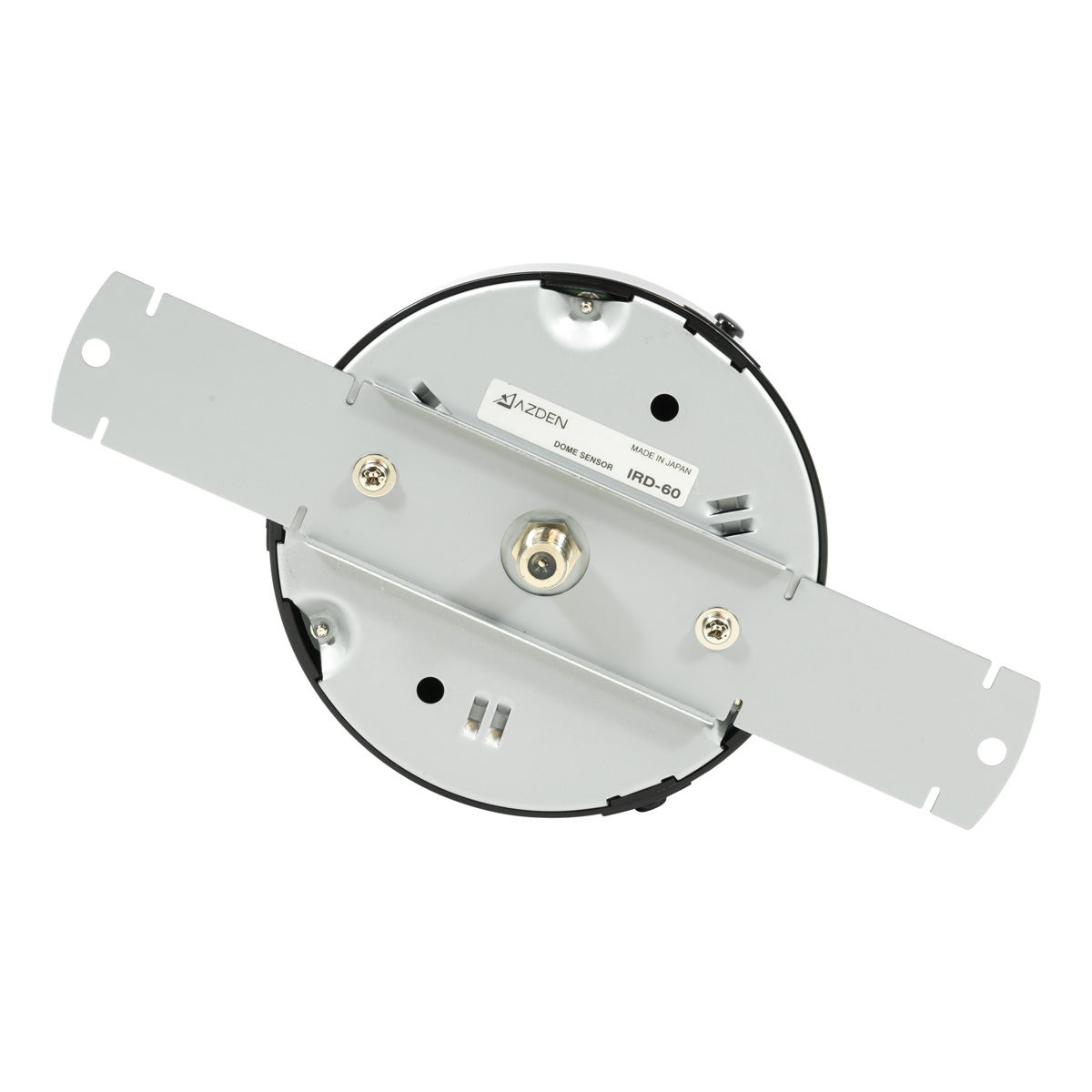

IRD-60 External IR Dome Sensor
Feature
External IR Dome SensorDesigned to be mounted in drop-ceilings, a single well-positioned IRD-60 external IR sensor provides complete classroom coverage in most classroom situations. However, up to 3 sensors can be connected to extend coverage in larger rooms. Mounting is easy, and the sensor is connected to the IR receiver with a standard coaxial wire.
Specification
| Output: | F connector |
|---|---|
| Power | powered by receiver (24V @ 15mA) |
| Cable requirement | RG59 – 75 ohm coaxial |
| Size | 3.94” x 1.18” (100 x 300mm) |
| Weight | 6 oz (170g) w/ mounting bracket |
