310LT UHF Wiresless System
Feature

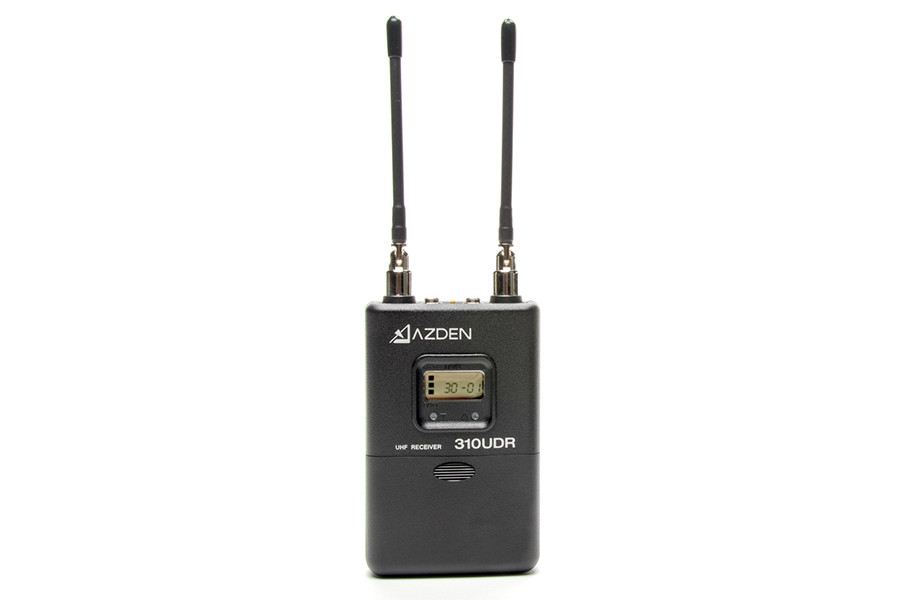

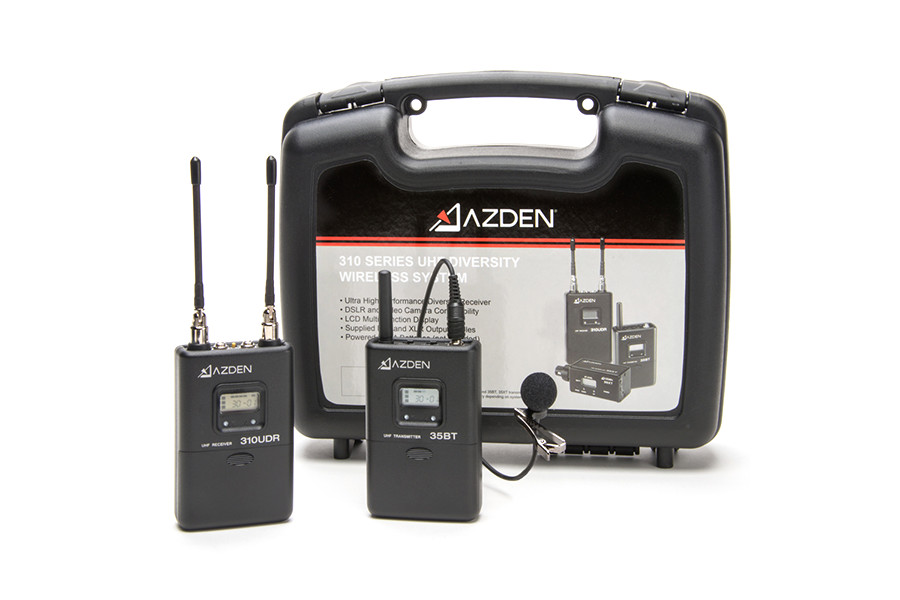

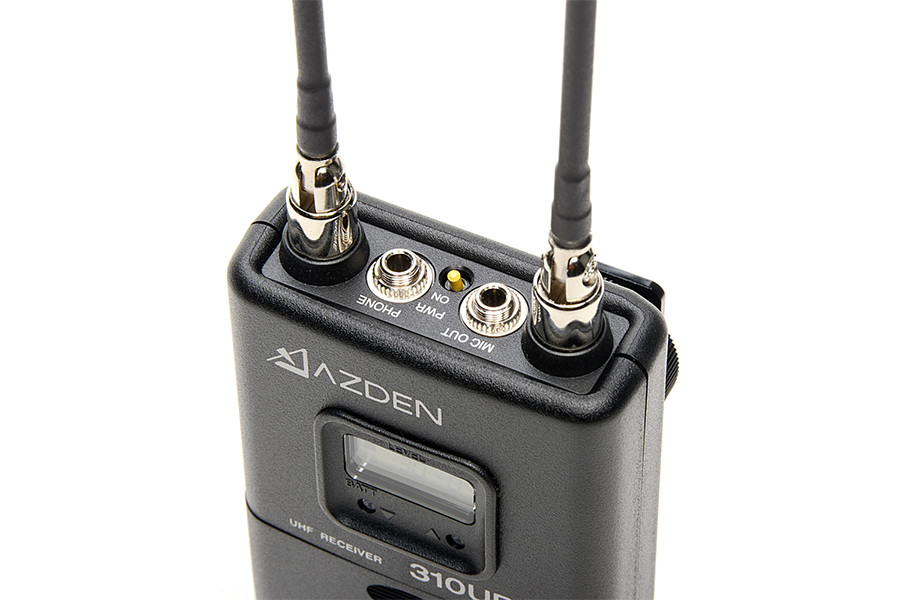

The series consists of the 310UDR single-channel On-Camera Diversity receiver and the 35BT Belt-Pack transmitter.・Diversity Single-channel Receiver for longer range
・User-Selectable UHF Frequencies
・New,Pivoting High-Gain Antennas on the Receiver
・Digital LCD Display w/Multifunction Readout
・ Mini-Jack Out w/Mini and XLR Cables Included
・ Headphone Output on the Receiver
・ Includes Removable Shoe-Mount
・ Powered by 2 “AA” Batteries (not included)
・EX-50 high quality lavalier mic comes with
・Package is packed in hard-carrying case
Remarks:
Optimum radio frequency refer separate each model page.
Specification
| 310UDR | |
|---|---|
| requency Range | ASIA : UHF 240 Frequencies (794 - 805.950 MHz) USA&OCEANIA : UHF 188 Frequencies (566.125 - 589.875 MHz) India: UHF 41 Frequencies (865-867MHz) |
| Frequency Response | 50Hz - 15 kHz |
| Adjacent Channel Selectivity | 67dBm or more |
| Intermodulation | 62dBm or more |
| Noise Reduction | Compander |
| Audio Output (balanced) | -28 dBm (100% Dev. Mic level) |
| S/N Ratio | 84dB or more (100% Div.) |
| Phone Out | 3.5 mm - 30Ω stereo mini jack |
| Power Requirement | 2 “AA” Batteries (Alkaline or NiMH ) |
| Battery Life | Approx. 8 hours |
| Output Impedance | 1 k Ohms |
| Dimensions | 63(W) x 98(H) x 28.5(D) mm 2.48 x 3.86 x 1.12 inches |
| Weight | 190 g 6.7 oz w/batteries |

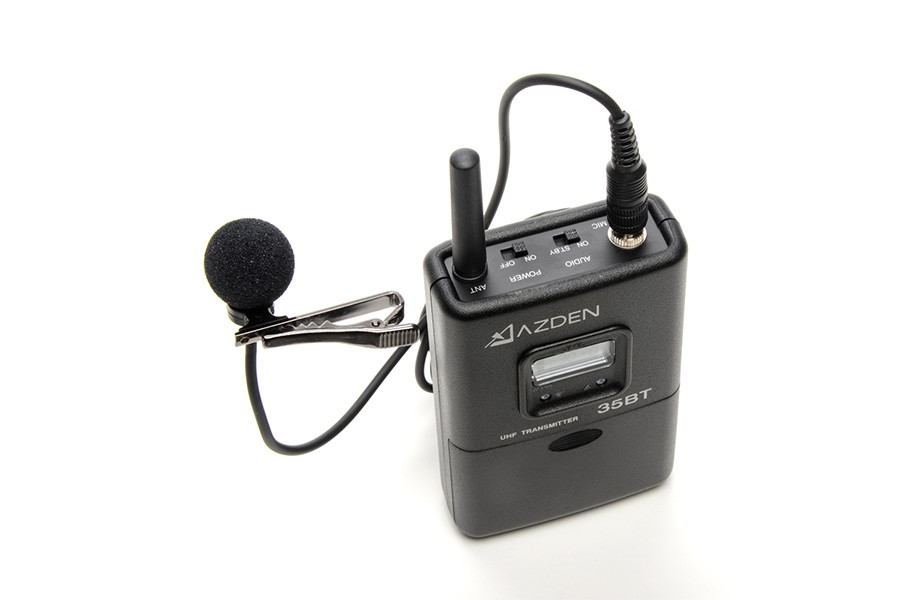

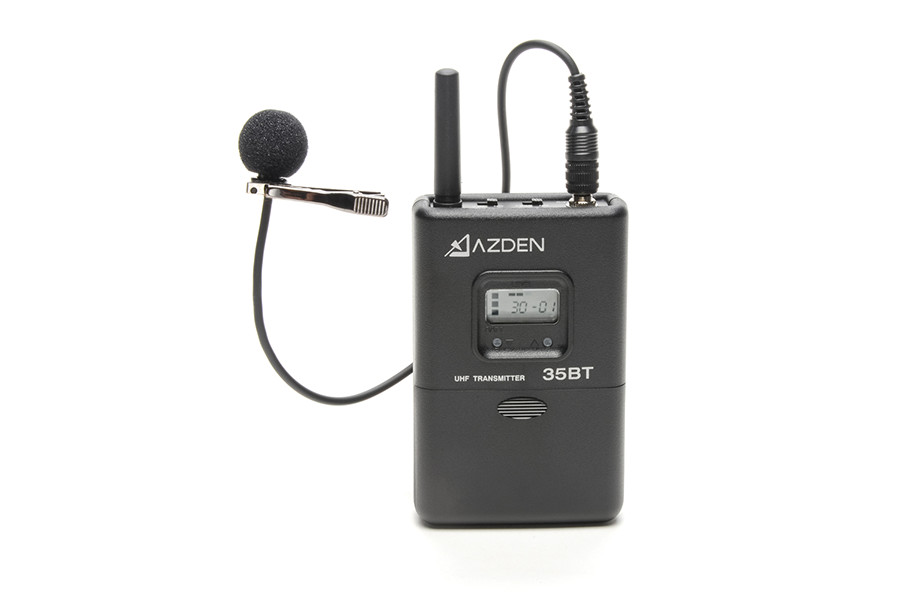

| 35BT | |
| Frequency Range | ASIA : UHF 240 Frequencies (794 - 805.950 MHz) USA & OCEANIA : UHF 188 Frequencies (566.125 - 589.875 MHz) India: UHF 41 Frequencies(865-867MHz) |
| Oscillator | PLL Synthesized |
| RF Power | ASIA/Oceania/USA: 25mW India: 10mW |
| Frequency Response | 50Hz – 15kHz |
| Max. Deviation | ±40kHz @ 1kHz Modulation MIC Input – 11dBm |
| Batteries | 2 “AA” Alkaline (2 x 1.5V) – 6-8 hours runtime 2 “AA” rechargeable Ni-MH(2 x 1.2V) |
| Dimensions | 64(W) x 100(H) x 27(D) mm 1.57 x 1.57 x 4.49 inches |
| Weight | 180 g 6.35 oz w/batteries |
| Supplied Mic | EX-50 |
