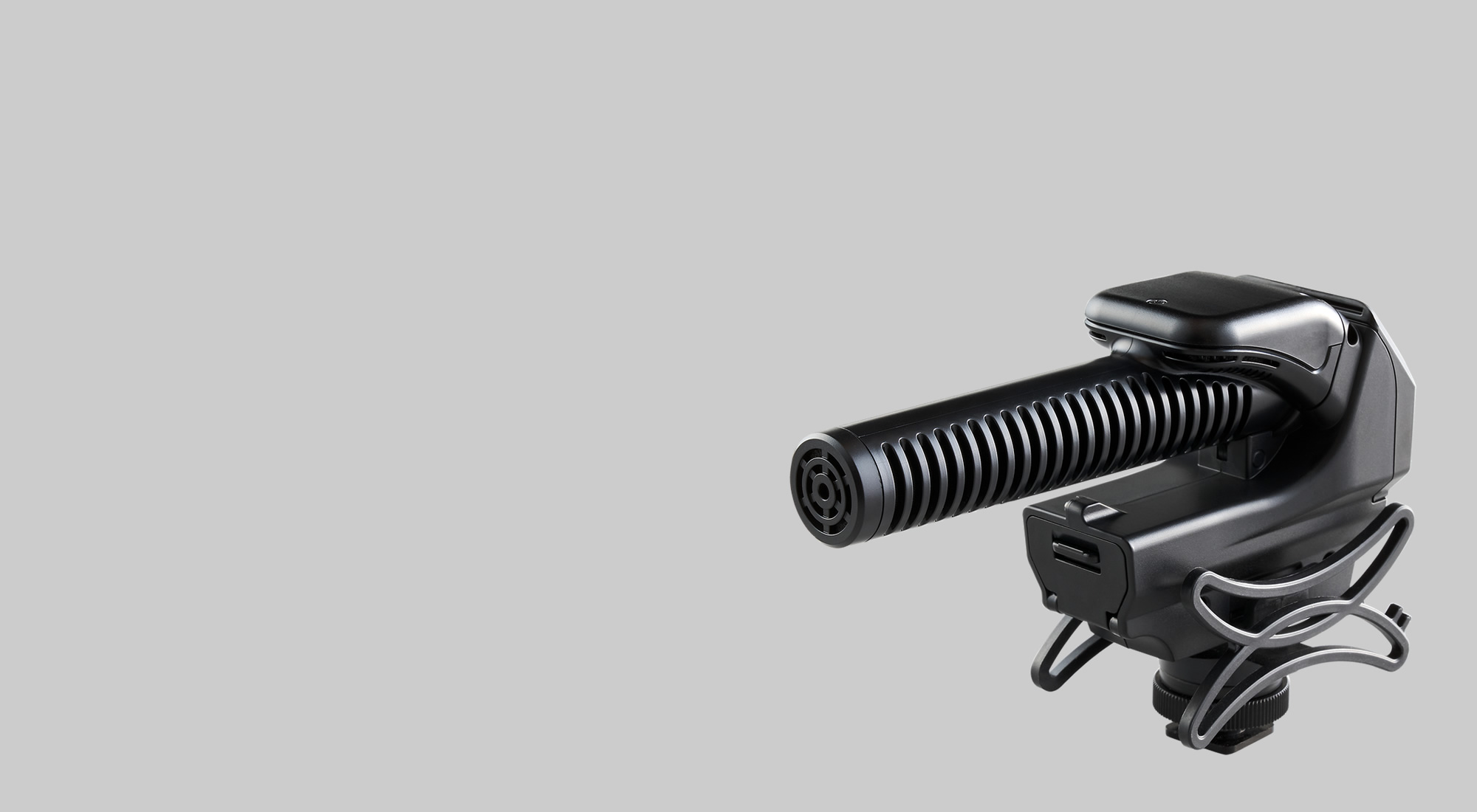

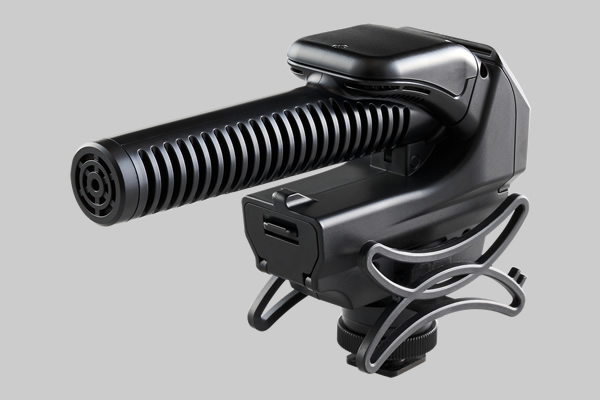

Mono Video Microphone
High-performance Video Microphone
SMX-15Ⅱ uses a supercardioid shotgun microphone to really focus on your sound source.

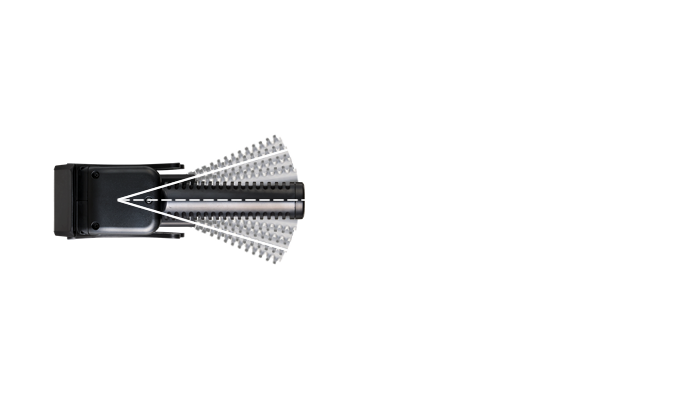

The new swivel function in the mount

When the subject is located near the edge of the visual field, the swivel function in the mount lets you point the microphone towards the subject without changing the position of your camera, via a horizontal rotation adjustment of approximately 30 degrees to the left or right. This feature enables you to precisely capture audio regardless of where in the visual field the subject is positioned.

Advantage of the swivel function
Low-Cut Filter
Reduces low-frequency noise. A helpful tool for mitigating noise from HVAC systems or wind.
Auto Power
Setting to AUTO will turn the microphone on and off with your camera automatically, saving you from losing a great take and conserving battery.

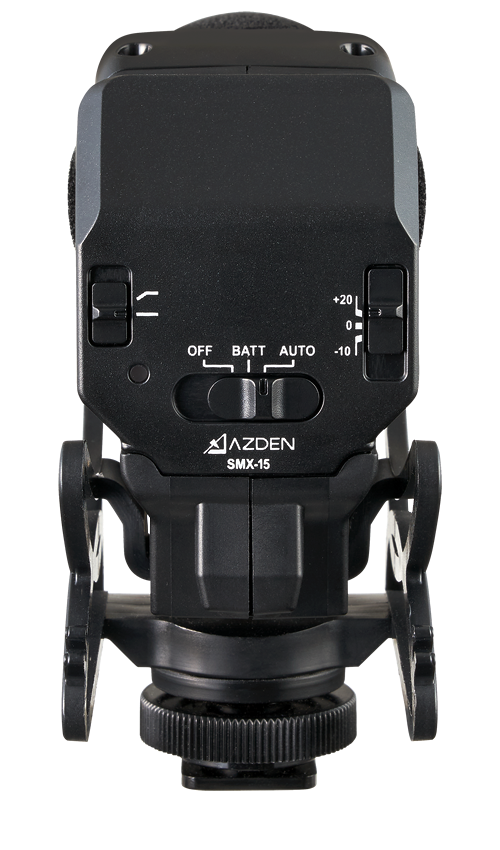

Three-steps Gain Control
The SMX-15Ⅱ has three gain settings: +20dB, 0dB and -10dB. The +20dB setting is best for recording interviews and events in a quiet environment. With your camera gain setting adjusted to a lower level, the +20dB setting can turn down the gain of your camera's preamp to significantly reduce the noise it produces. The -10dB setting prevents against distortion in a loud environment, well suited for recording concerts, sporting events and other big sounds.

Vibration Isolating Shock Mount

Made from a virtually unbreakable composite material, the shock mount effectively isolates the microphone from the vibrations created by handling a camera. Designed to mount on top of a camera’s cold shoe, a threaded ¼”-20 tap is also available for boompole and accessory bar mounting.Noises from cable movement may be alleviated by securing it to the notch in mount.

Detachable Output Cable

Equipped with a new detachable coiled output cable.

Specifications
Mic Element
Electret Condenser
Frequency Response
40Hz - 20kHz
Polar Pattern
Mono: Super-Cardioid
Sensitivity
-36dB @ 1kHz
Impedance
50Ω
Dynamic Range
118dB
Max Input Level
128dB SPL (1kHz@ 1% T.H.D.)
Signal To Noise Ratio
82dB (1kHz at 1Pa)
Low Cut Function
120Hz, 3dB/octave
Gain Control
-10dB, 0dB, +20dB
Power Switch
Off, Battery, Auto
Max Output Level
+6.2dBu
Power
AA batteries x2
Dimensions
47mm x 102mm x 145mm
Weight
135g (Includes detachable output cable)
Connector
Φ3.5mm Stereo mini-jack
Supplied Accessories
Windscreen, carrying pouch,Φ3.5mm Stereo mini plug

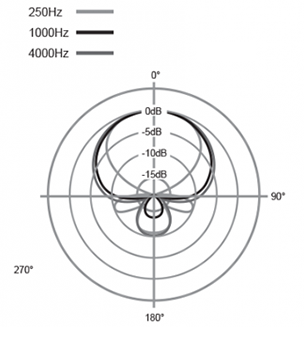

Polar pattern
Frequency Response
