SGM-250LX
Professional Compact Microphone
with L-type XLR Connector
with L-type XLR Connector
Compact Microphone that
Meets Professionals' Needs
Meets Professionals' Needs

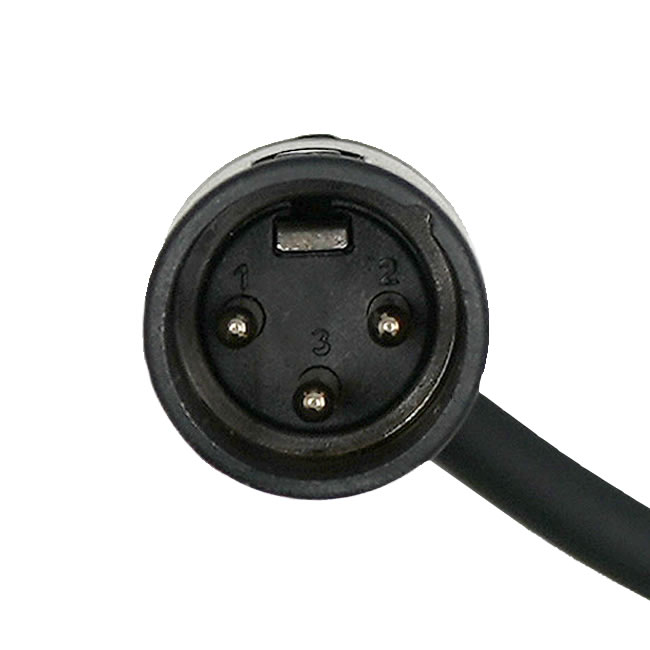

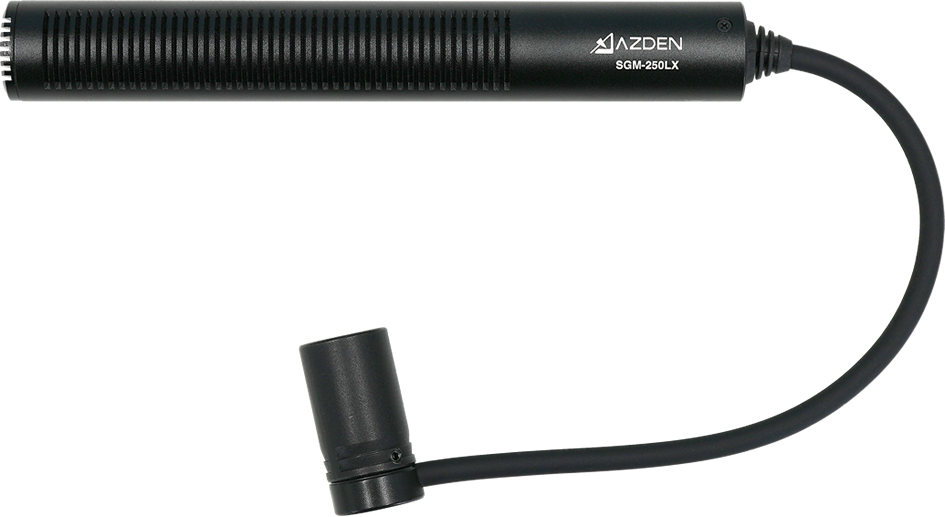

The SGM-250LX is a phantom-powered compact shotgun microphone featuring the industry's first hard-wired L-shaped XLR connector with a 200mm cable for uncluttered handling. Compared to the standard straight XLR connector that protrudes from the jack by approx. 55mm, the L-shaped connector limits the protrusion to only 20mm (64% less). Not only does this substantially less protrusion make the handling eaiser, it saves the storage space as well. As the result of careful examination with many cameras on the market, the SGM-250LX's cable length was shortened to 200mm from 330mm of the SGM-250CX/MX for the optimal handling.

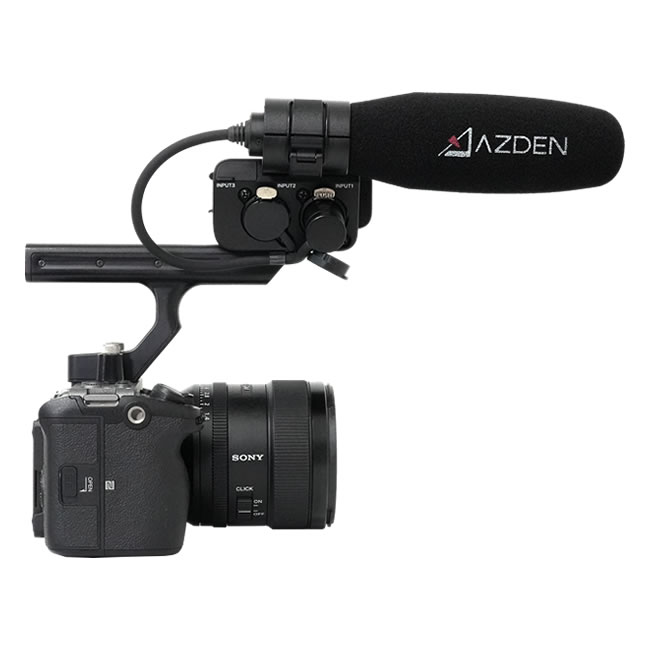

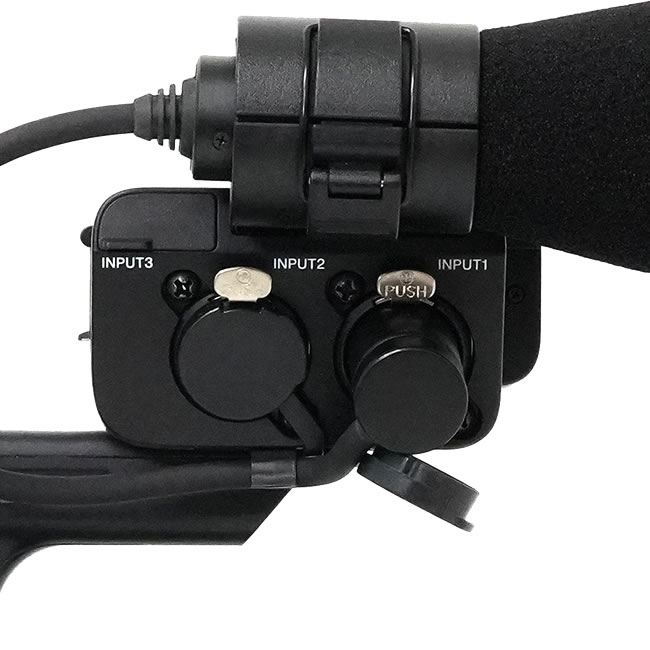

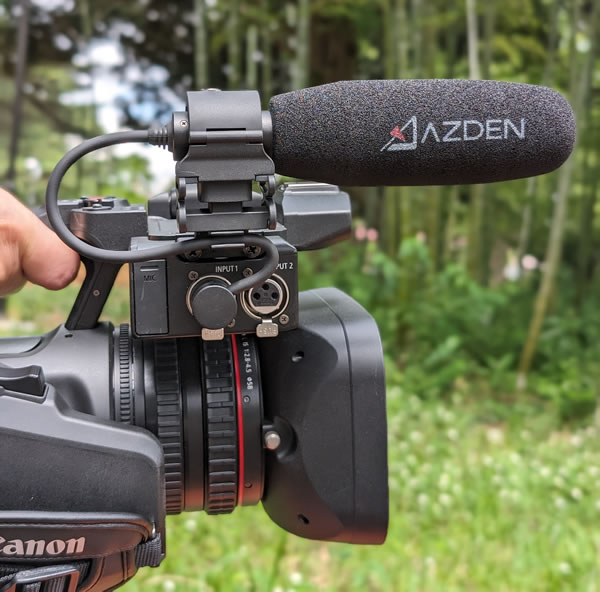

The Cable Angle that Does Not Interfere with Neighboring Terminals

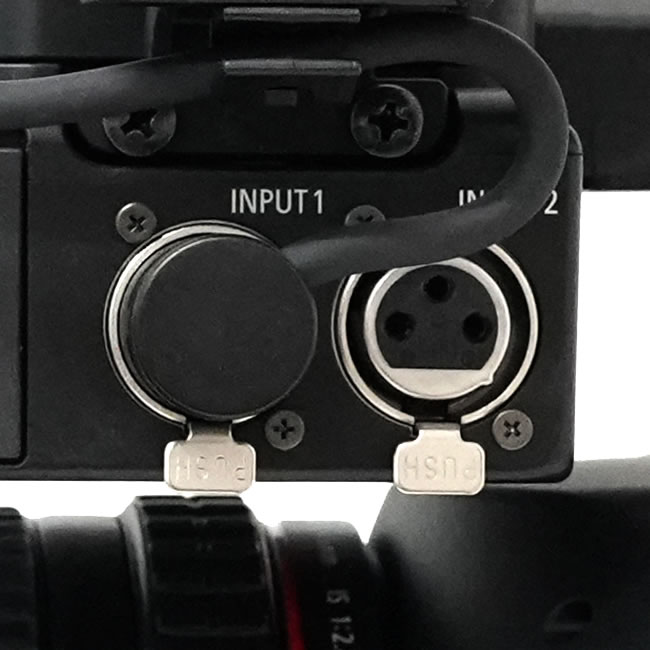

The SGM-250LX's cable exit angle was designed to be 45 degrees instead of the conventional L-shaped connector's 90 degrees in order to avoid interference with the neighboring jacks.
* Note: Altering the exit angle will void the warranty.
* Note: Altering the exit angle will void the warranty.

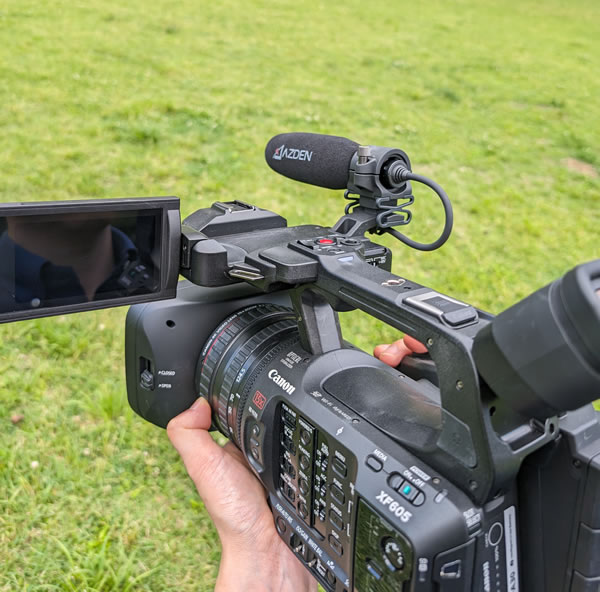

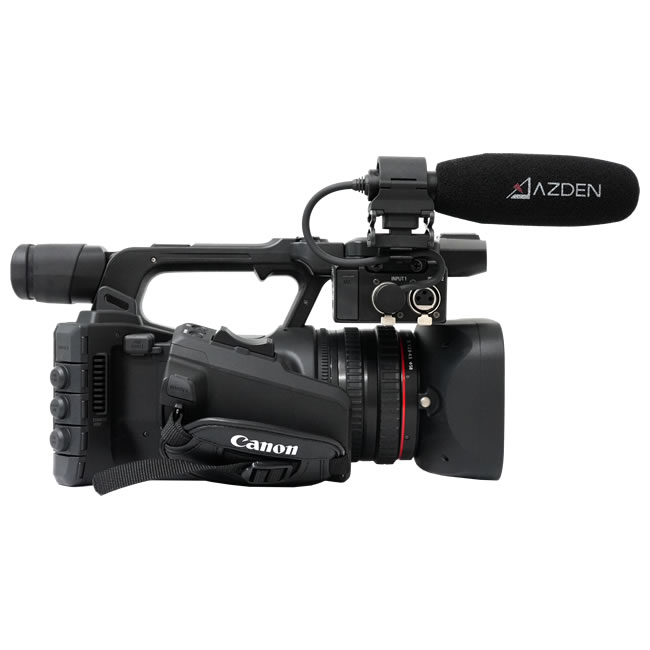

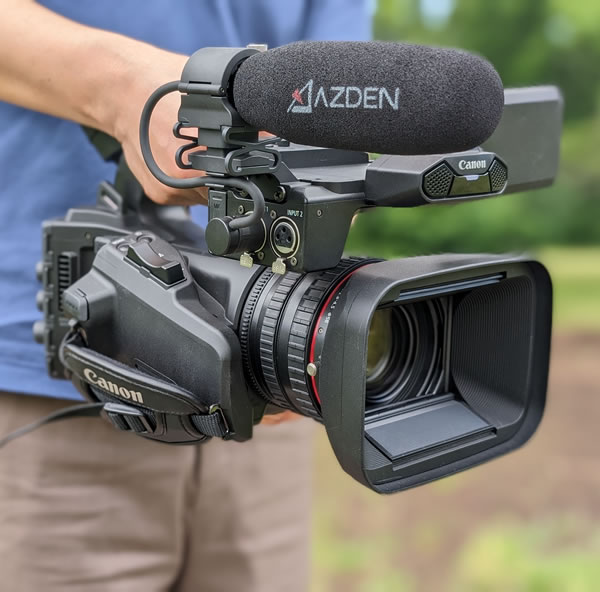

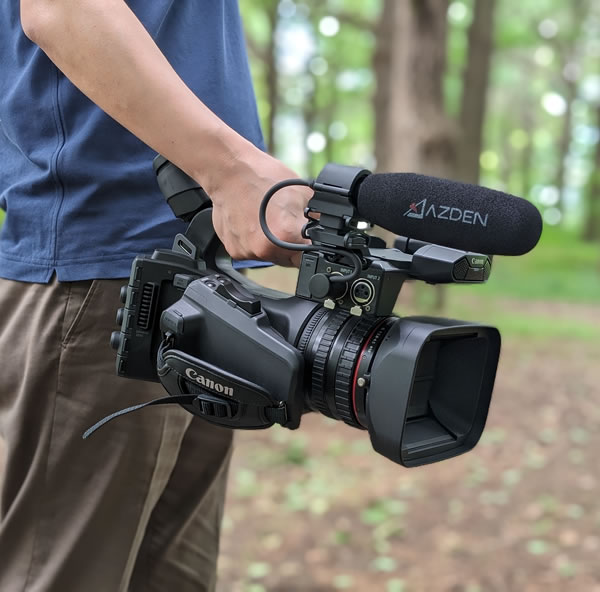

Improved Handling
Our careful examination with many cameras on today's market proved the cable length of 200mm as optimal length for best handling.

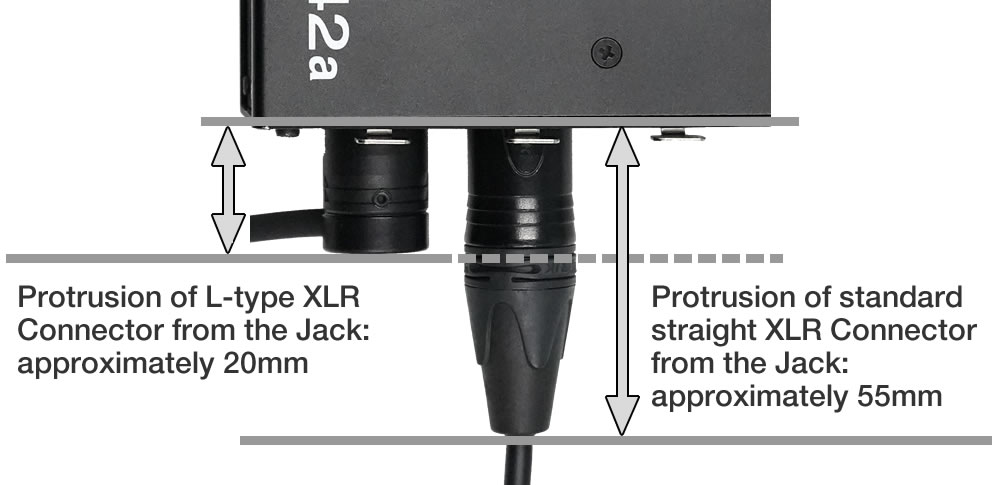

Comparison with the Conventional Straight XLR Connector

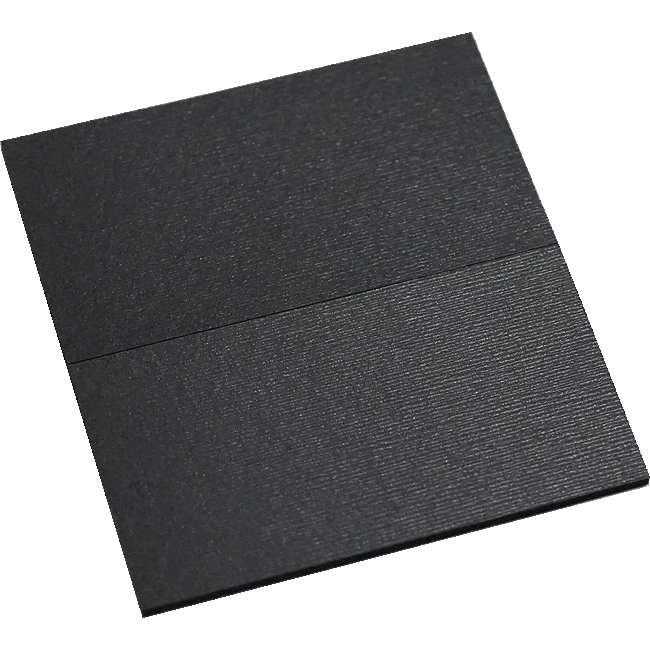

Diameter Expander Sheets
Diameter expander sheets are included to accommodate some camera's clamp-type microphone holders in larger diameters. The conventional rubber sheets were replaced by urethane foam sheets for better flexibility.
Sound Quality Reviews
The SGM-250LX is the same microphone as the SGM-250CX/MX. These sound quality reviews are from the users of the SGM-250CX/MX.
This micrphone produces nstural sound and its directionality is suited for on-camera use in my opinion. It has a wide frequency response and no noise to talk about. It is a very nice microphone.
Comparing with the hard-wired microphones from other manufacturers, this microphone clearly sounds better.
Specifications
- Type
- Electret Condenser
- Frequency Response
- 20-20,000Hz
- Sensitivity
- Super Cardioid -33 dB at 1kHz (0dB = 1V/Pa:)
- Impedance
- 100Ω (at 1kHz)
- Dynamic Range
- 112dB
- Max.Spl Input Level
- 130dB SPL. (1kHz at 1% T.H.D)
- Signal To Noise Ratio
- 76 dB (1kHz at 1Pa)
- Power Requirement
- DC 11V-50V(Phantom)
- Weight
- 120g
- Dimensions
- φ21 mm x 153 mm
- Cable Length
- φ5mm x 200mm
- Connector
- Male 3-pin L-Type XLR
- Supplied Accessories
- uretane sheets, foam windscreen
Sensitivity
Frequency Response
