SGM-250CX
Professional Compact
Cine Microphone
The Best Compact Professional Microphone for Digital Cinema Cameras

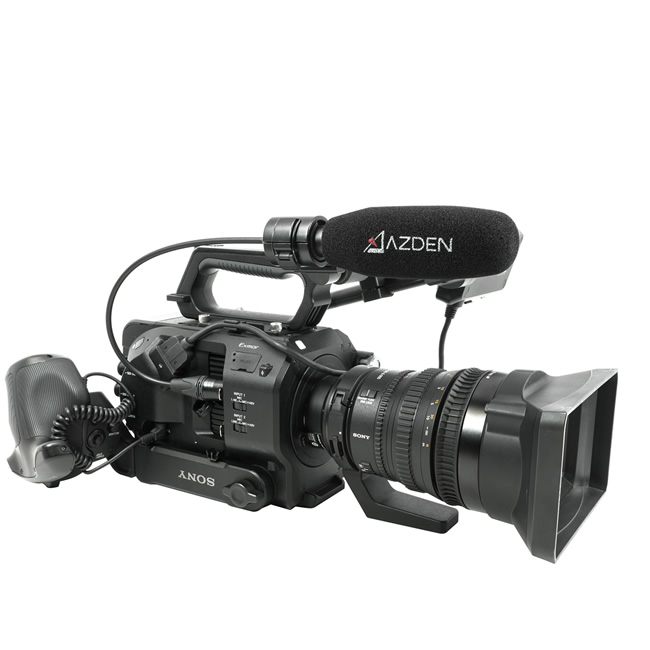

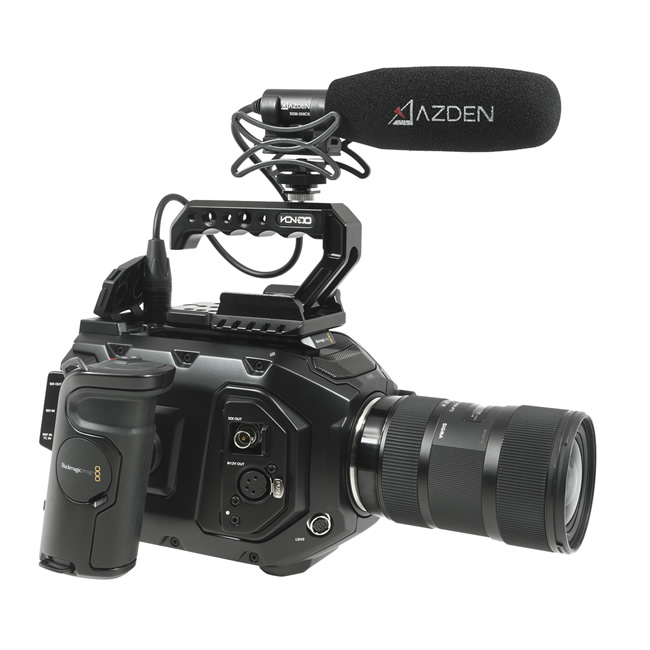

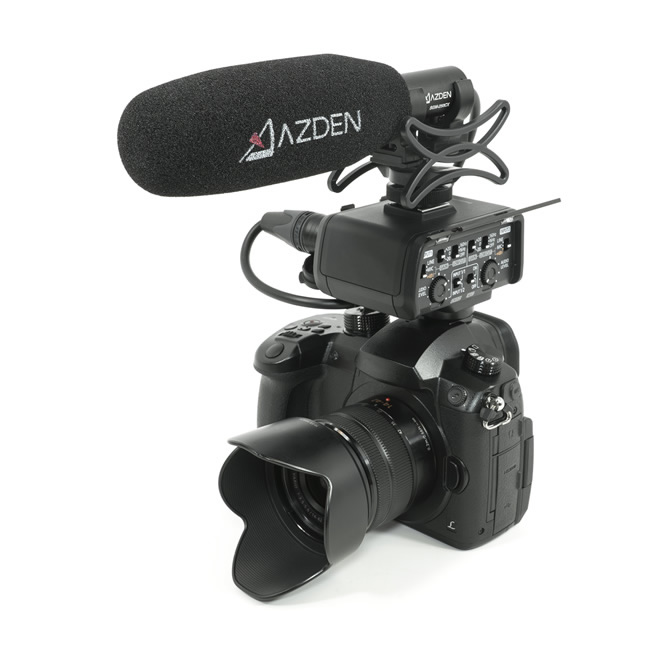

The SGM-250CX is a short length, condenser shotgun microphone that is ideal for mounting on compact digital cinema cameras, as well as DSLR and mirrorless cameras equipped with XLR adapters. Measuring at a mere 6 inches in length, the SGM-250CX can easily stay out of the way. Integrated in the microphone’s design is a hardwired, 13-inch XLR cable for convenient connection to camera microphone inputs. The microphone’s highly sensitive, condenser element is powered by standard 48 V phantom power, which most XLR microphone inputs can provide. The SGM-250CX has become notable in the industry for its natural, professional sound. Specifically tuned to preserve the natural qualities of a speaking subject.

Focused on Ease of Use
The SGM-250CX includes Azden’s SMH-X shock mount which mounts to standard size camera shoe slots, as well as 1/4”- 20 threaded mounts and tripods. Also included are diameter expander sheets for universal compatibility with ring-clamp style microphone mounts.
Specifications
Mic Element
Electret Condenser
Frequency Response
20Hz - 20kHz
Sensitivity
Super Cardioid -33 dB at 1kHz (0dB = 1V/Pa)
Impedance
100Ω (at 1kHz)
Dynamic Range
112dB
Max.Spl Input Level
130dB SPL. (1kHz at 1% T.H.D)
Signal To Noise Ratio
76 dB (1kHz at 1Pa)
Power
Phantom 11-50V
Dimensions
φ21 mm x 153 mm
Cable Length
φ5 mm x 330 mm
Weight
85 g
Connector
XLR-3pin
Supplied Accessories
Shock mount holder, windscreen, carrying pouch, rubber sheets
Polar pattern
Frequency Response
